Radicle Lab

The world's first fully-automated soil laboratory.

Transform your entire workflow with a soil lab designed to remove the error-prone processes that occur in traditional lab practices. Radicle Lab's automated soil testing saves you time and gives you more accurate results.

A Fully-Automated Soil Lab

The centerpiece of Radicle Agronomics, Radicle Lab runs hundreds of samples unattended. Its small footprint and self-calibration technology make it an ideal solution for those seeking to increase efficiency without sacrificing accuracy.

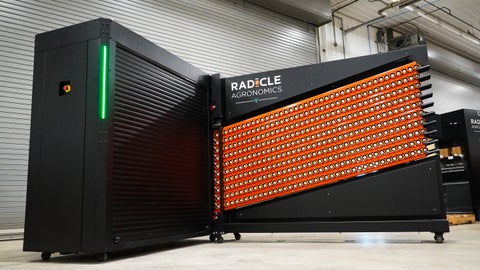

Radicle lab inside a workshop with orange GeoTubes loaded and a green status light bar.

How it works

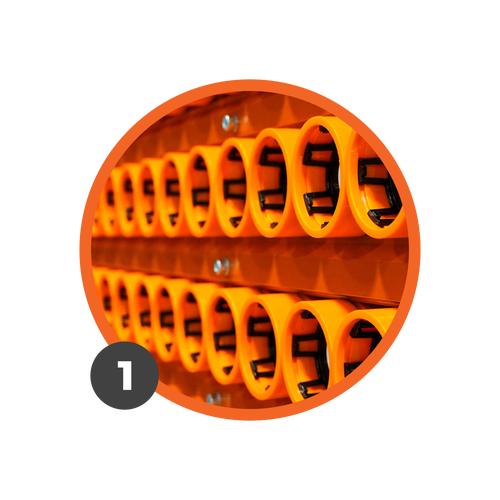

Orange GeoTubes in two rows loaded in a Radicle Lab.

Load GeoTubes


Radicle Lab holds up to 400 samples at once.

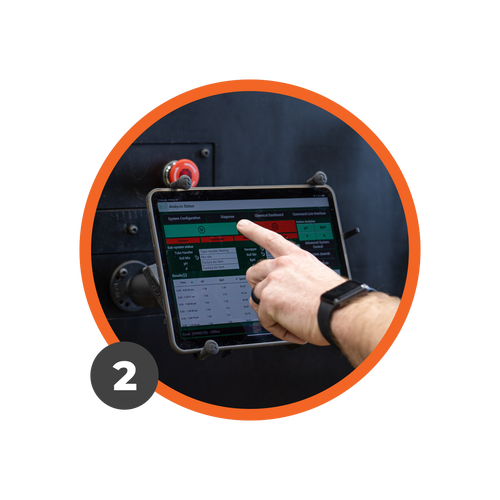

An agronomist's hand pushes the start button on a Radicle Lab tablet interface.

Press Start


With the push of a button, Radicle Lab runs automatic calibration checks and begins processing.

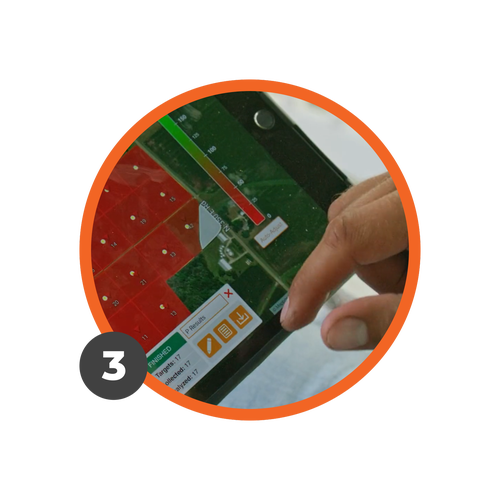

An agronomist touches a tablet device with Radicle Lab results inside the Radicle App.

Get Results


Results automatically stream into the Radicle App to be shared and exported.

Soil analysis without lifting a finger

Revolutionary, patented Microflow™ technology built into Radicle Lab™ removes all human touches that occur during the traditional laboratory process, ensuring that every sample is analyzed identically. Radicle Lab measures phosphorus (<=200ppm), potassium, calcium, magnesium, pH, buffer pH, and calculates cation exchange capacity and base saturations, and is only compatible with mineral soils (<10% O.M.).

MicroFlow manifolds inside of Radicle Lab.

Designed With Flexibility in Mind

  • Electrical » 220-240VAC, 50-60 Hz, 16amps. Power cable provided.
  • Water Supply » standard 3/4" garden hose, water is purified within Radicle Lab.
  • Air Requirements » two-stage piston style compressor, ≥60gal. tank capacity, 15 SCFM at 175psi. Air regulator capable of 100+ CFM.
  • Climate Control » must be installed in a climate-controlled environment between 50-70ºF.
  • Discharge » non-toxic water and clean soil, chemical waste safe to dispose of in sewer or septic system.
Technical specifications of the dimensions of Radicle Lab and GeoTube Handler in inches.

Become a Radicle Lab Partner

Are you passionate about providing farmers with superior fertility management knowledge and insights? If this sounds like you, we invite you to become a Radicle Agronomics business partner by housing and operating a Radicle Lab and offering agronomics services at your location.

    » I'm Interested

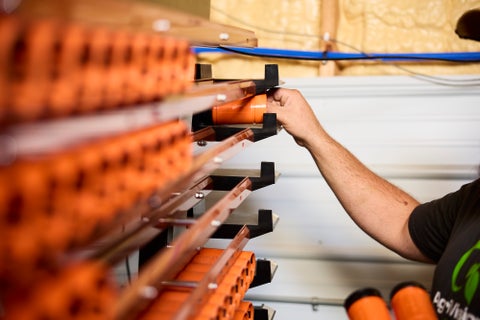

Person loading GeoTubes into Radicle Lab

Consistent results in under 20 minutes.


7f5109bb-9455-4d31-b74f-533787c46c0a

Automatic soil removal and preparation.

Consistent soil analysis with MicroFlow™.

Results streamed to Radicle App within minutes.

Traditional Lab

Soil extracted and prepared by hand.

Manual processes prone to user error.

Results dependent on technician availability.
